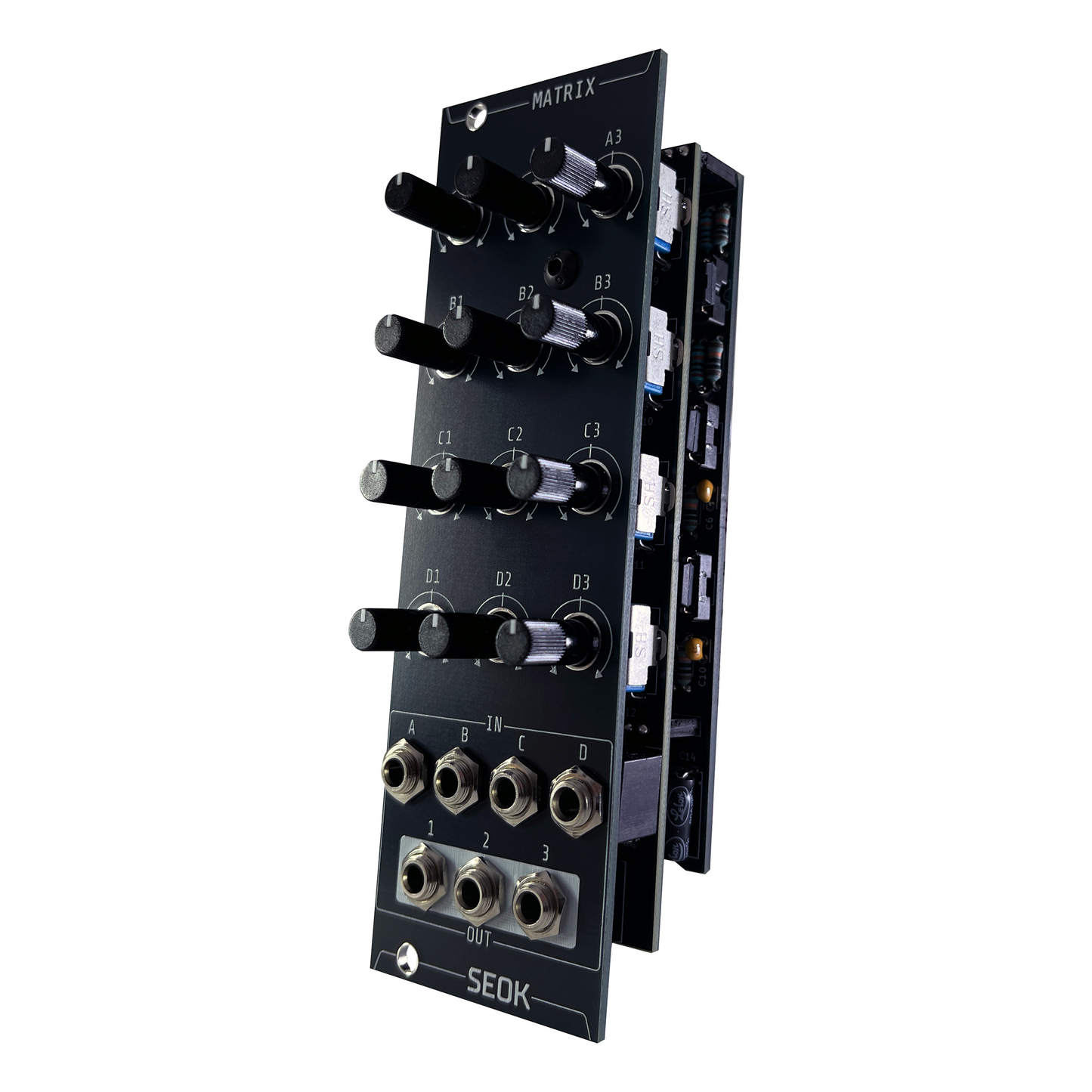

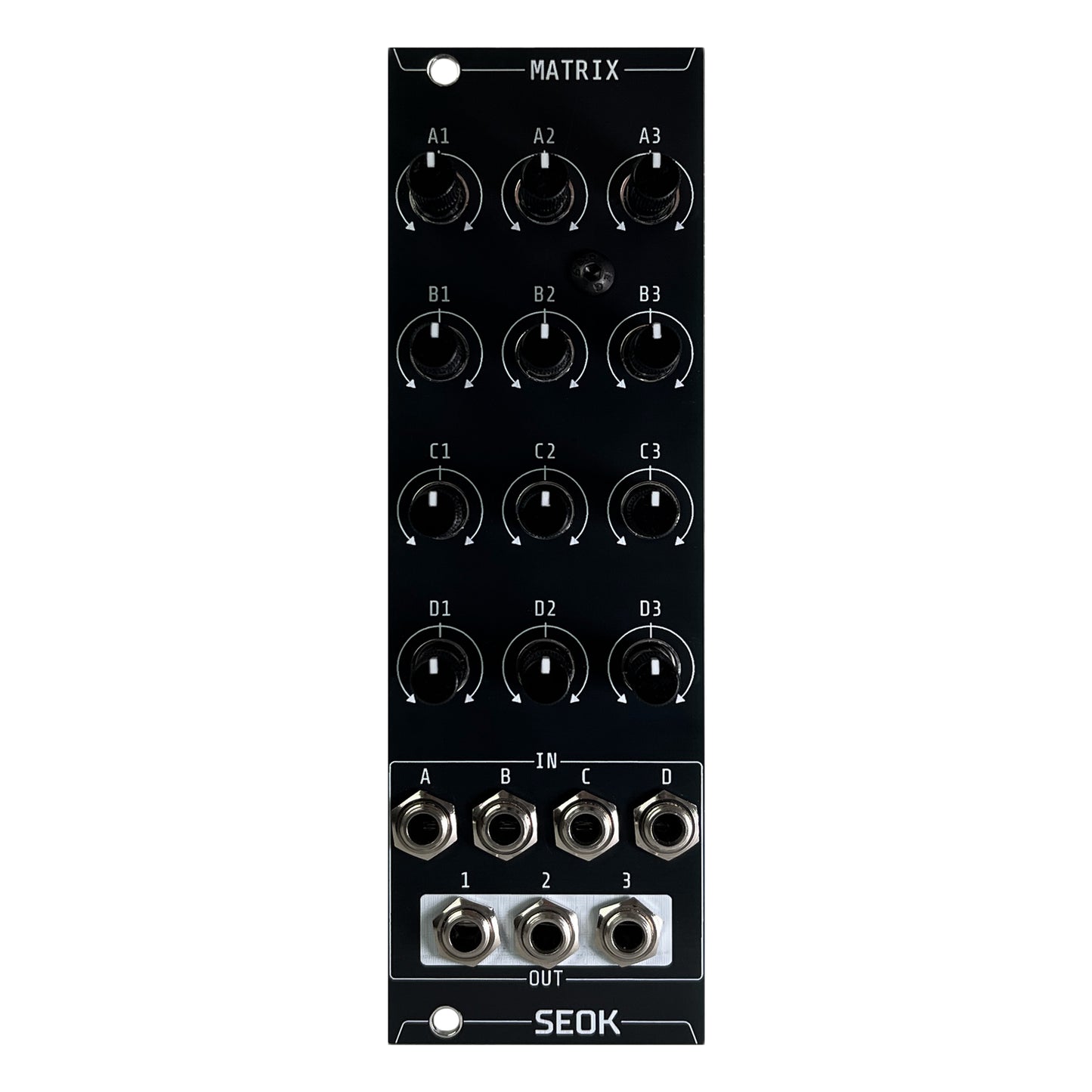

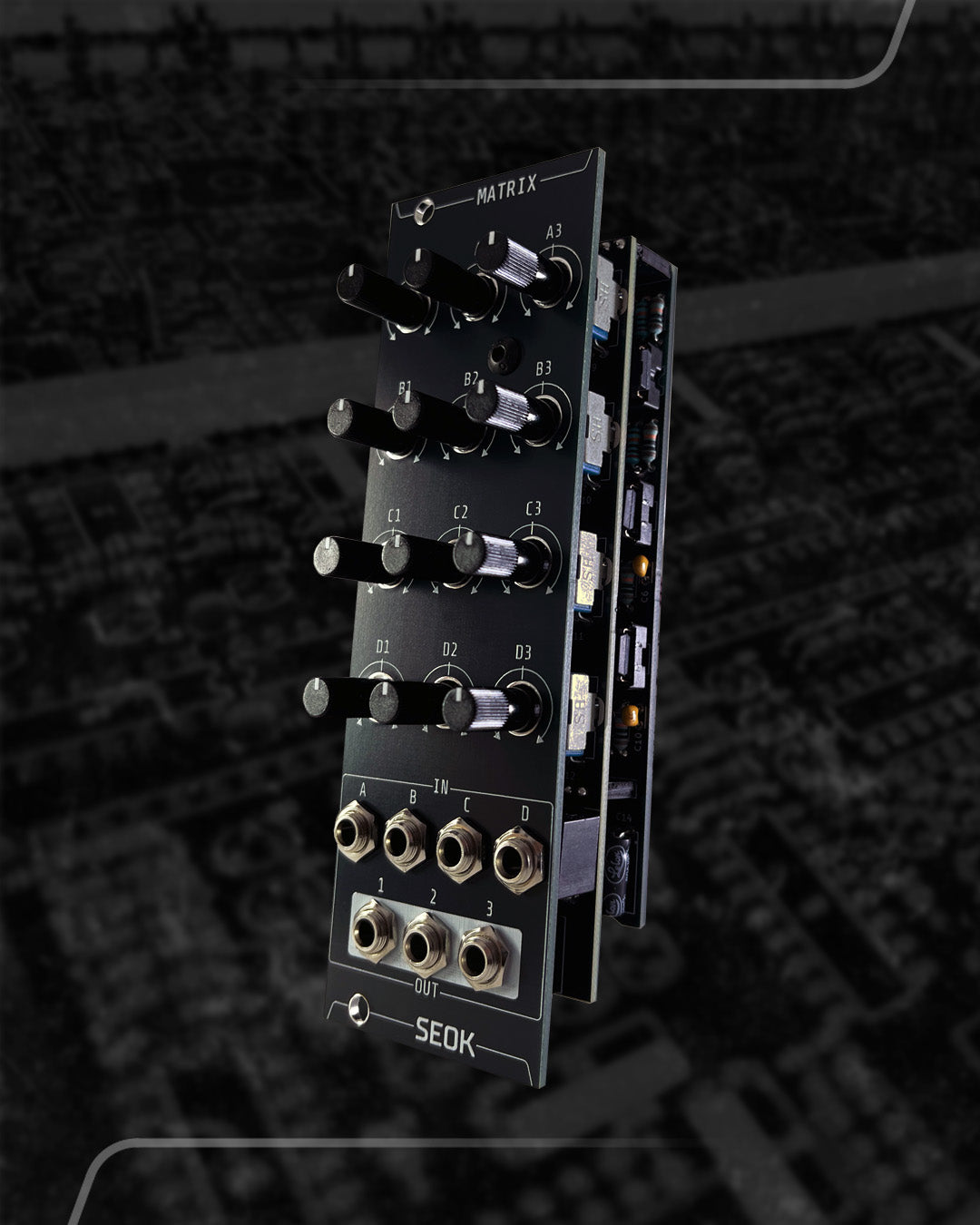

SEOK - MATRIX

MATRIX

Attenuverting Matrix Mixer

This is a DC-coupled attenuverting matrix mixer featuring four input channels and three output channels. Each knob serves to attenuate and invert the signal from its respective input, directing it to the corresponding output.

The knobs are set to zero at the 12 o’clock position. Turning the knobs clockwise adds the original signal to the mix, while turning them counterclockwise adds an inverted signal to the mix.

This module can be used to mix both control voltage (CV) and audio signals.

Background

MATRIX is an updated version of our classic MIX43. The biggest change is the footprint which now only takes 8hp from your precious rack space. And yet it’s still ergonomical, so basically it’s just a great improvement.

Specifications

Dimensions: Eurorack standard 8 hp

Depth: 28mm (incl. power cable)

Current Draw

+12v 36mA

-12v 36mA

+5v 0mA

Powercable and screws are always included.
