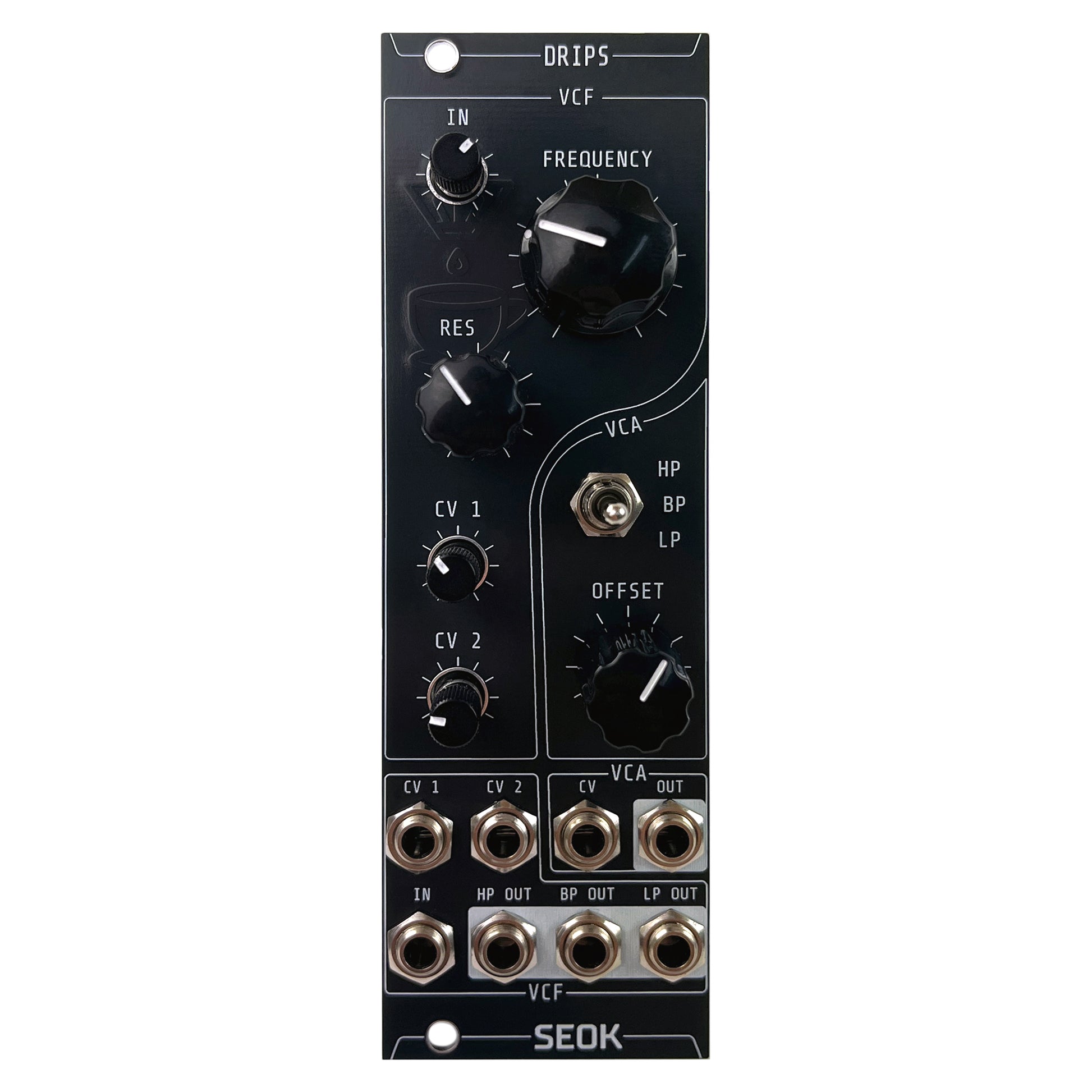

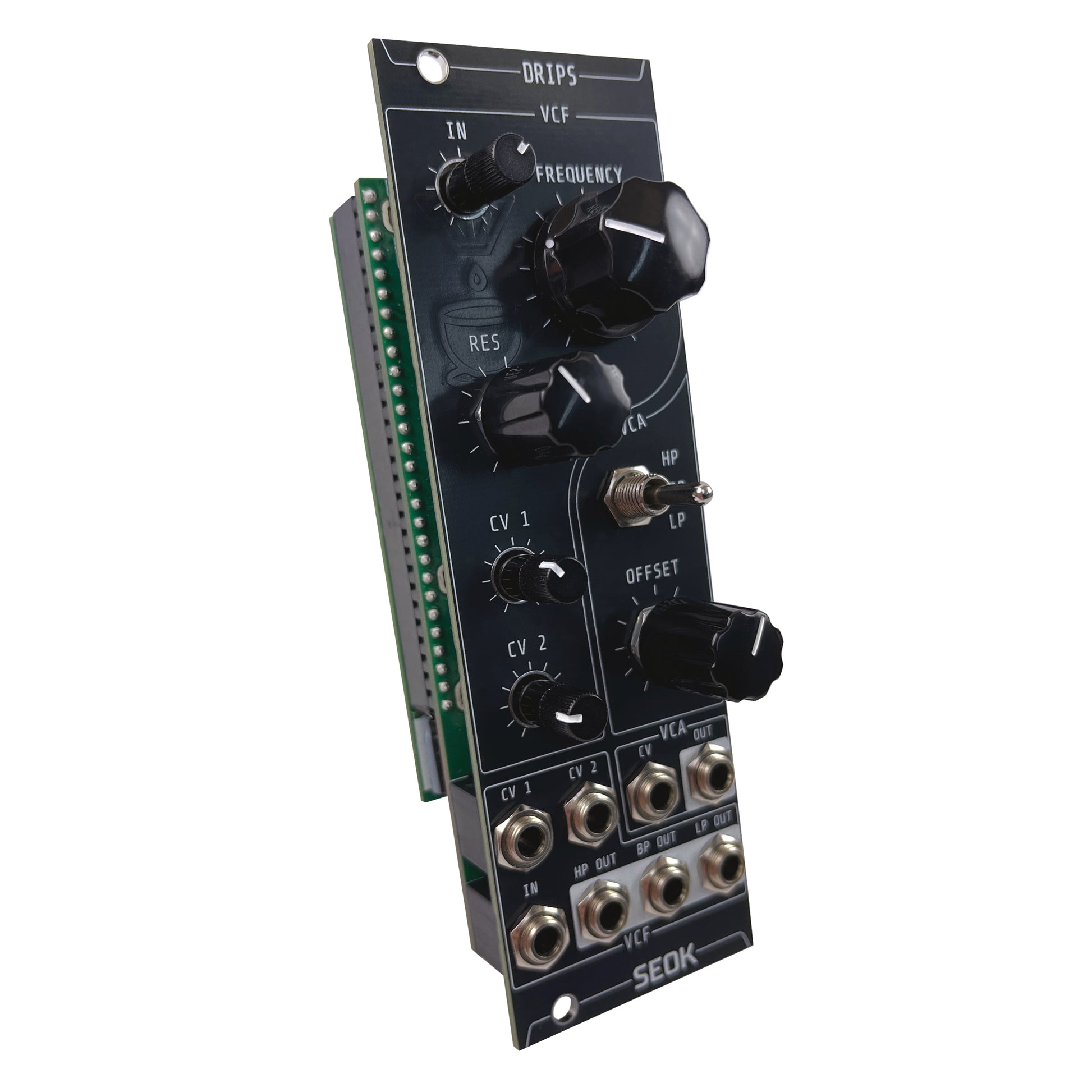

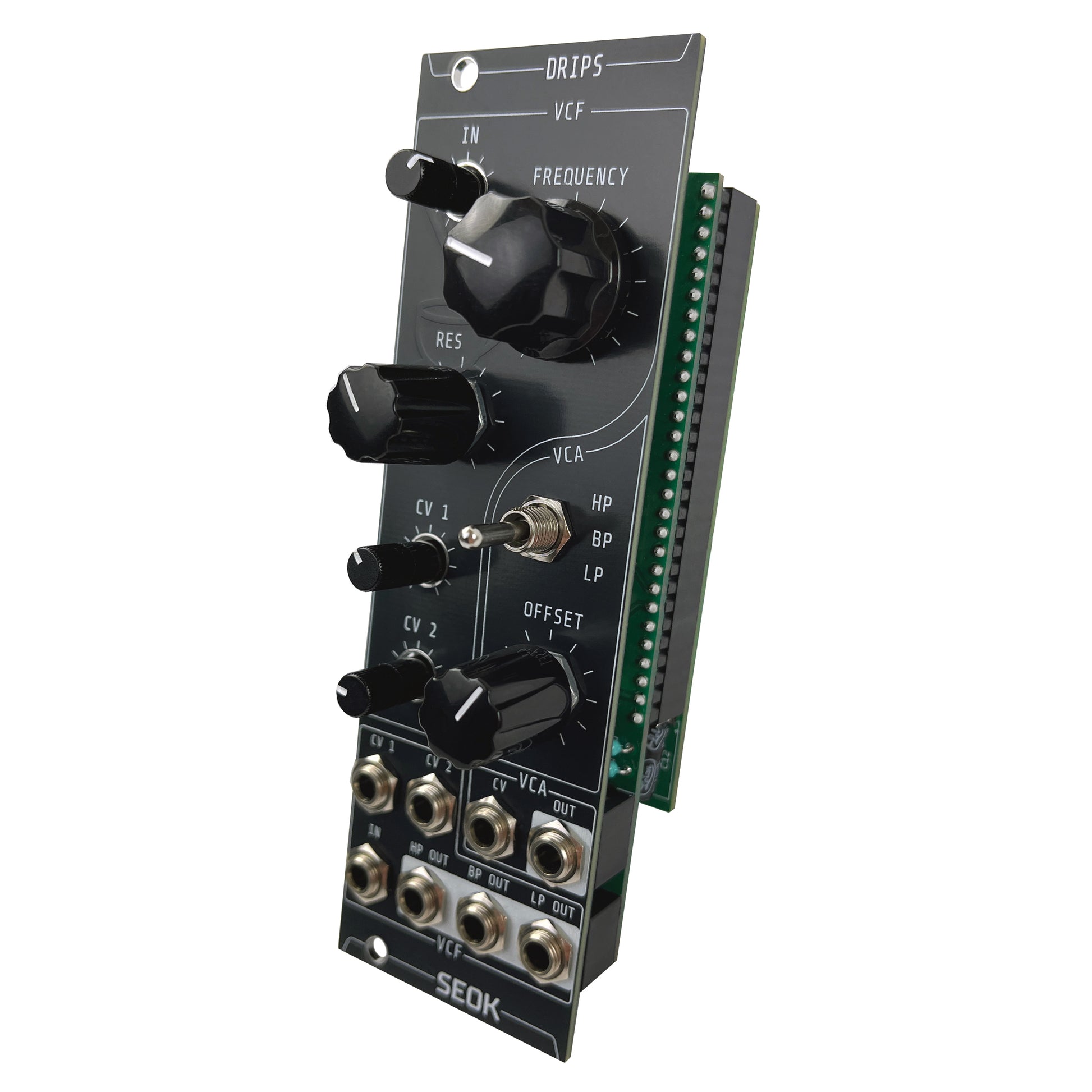

SEOK - Drips (Voltage Controlled Filter with VCA)

SEOK - Drips (Voltage Controlled Filter with VCA)

Regular price $378.00 CAD
Regular price Sale price $378.00 CAD
Sale Sold out

**FREE SHIPPING **

*Prices include taxes! Contact us if out of stock!*

Voltage Controlled Filter

A warm and bubbly 12 dB/oct low-, band-, and high-pass filter with dual voltage control of frequency.

With external signals, the filter stays soft, clean and precise. Adding resonance gives a liquid acid sound (as from a good filter coffee). When driven into self-oscillation, it generates sine waves perfect for deep bass, kicks, and percussive tones.

With an integrated VCA placed after the filter, the module shapes both tone and dynamics in a single path – precise when clean, saturated and raw when pushed.

Raise the offset to move seamlessly from rhythmic sounds to heavy drones.

Background

We wanted to build a versatile filter module with a balanced function-to-HP ratio, so we added a VCA too. For us, ergonomics are as important as function – it should feel intuitive and spacious around the core controls

And since we’re from Sweden, we couldn’t resist adding a little warmth…

Patch tips

Add a hotter signal to the VCF audio input or VCA CV input for the distortion!

Specifications

Dimensions: Eurorack standard 8 hp
Depth: 32mm (incl. power cable)

Max Current Draw
+12v 26mA
-12v 25mA
+5v 0mA

Powercable and screws are always included.

More info on the manufacturer's page.
