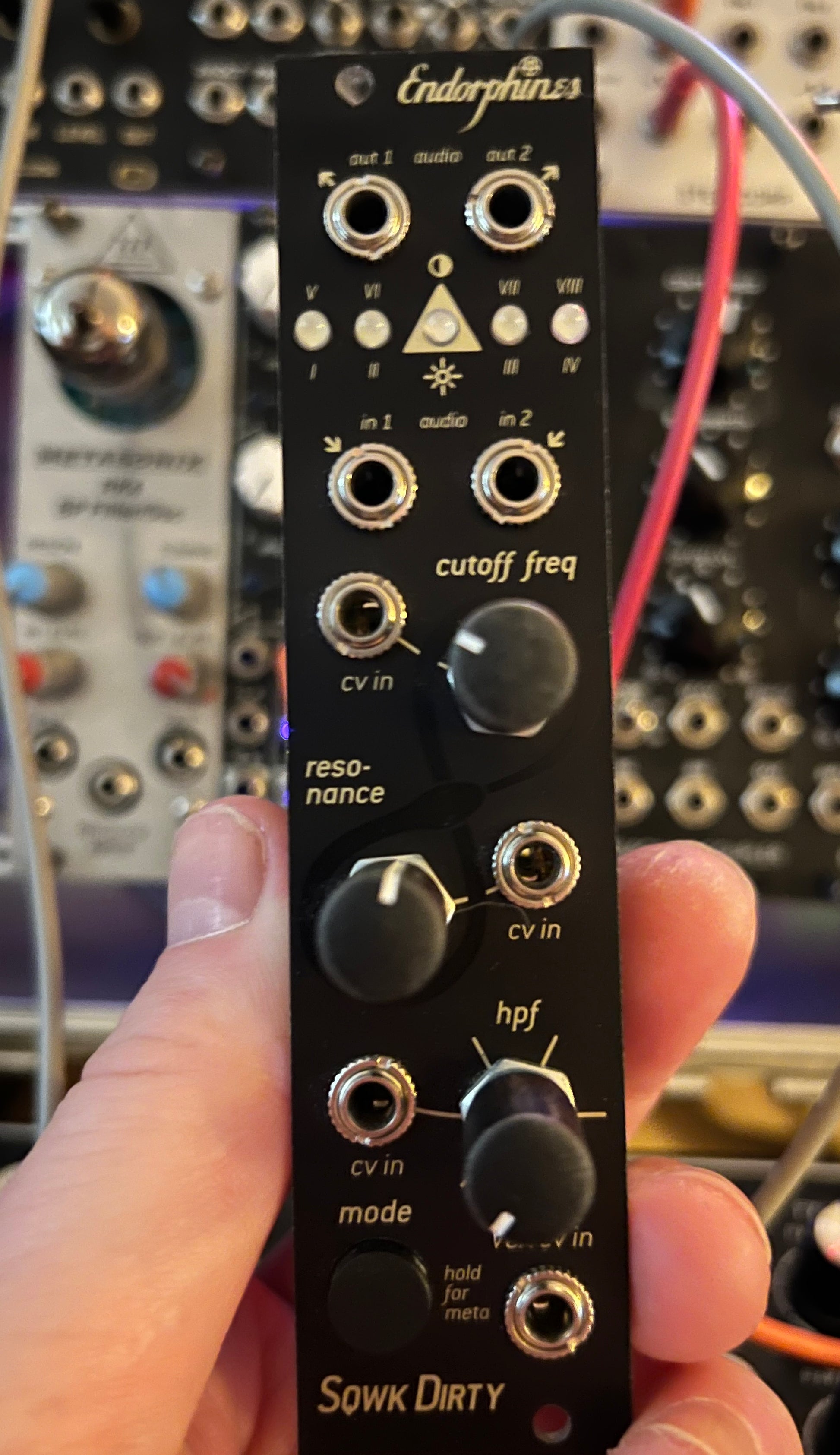

Endorphin.es - Squack Dirty to me (Used- 8 mode zero-delay feedback stereo VCF)

8 mode zero-delay feedback stereo VCF with Meta CV scan

• Simple and effective 6hp stereo VCF

• 96 khz 16 bits audio I/O with 32 bits internal processing

• 8 filter modes available with meta CV scanning, famous zero-delay feedback Grand Terminal filters: 24DB/OCT TRANSISTOR LADDER, MS-20 12DB/OCT, 12DB/OCT LOW PASS GATE, 12DB/OCT RESONANT LOW PASS GATE, 12DB/OCT DJ ISOLATOR BIPOLAR VARIABLE FILTER, 12DB/OCT HIGH PASS STATE VARIABLE FILTER, 12DB/OCT BAND PASS STATE VARIABLE FILTER, COMB FILTER / RESONATOR.

• Additional hi-pass filter in series quickly cuts the boomy low end.

• Stereo image widener with adjustable all pass filter delay on Right output.

• Built in post filter VCA for compact voice setup.

Power consumption:

• 120 mA +12V

• 15 mA -12V

• 0 mA 5V



  Dimensions:

• 6 HP

• 30 mm deep
