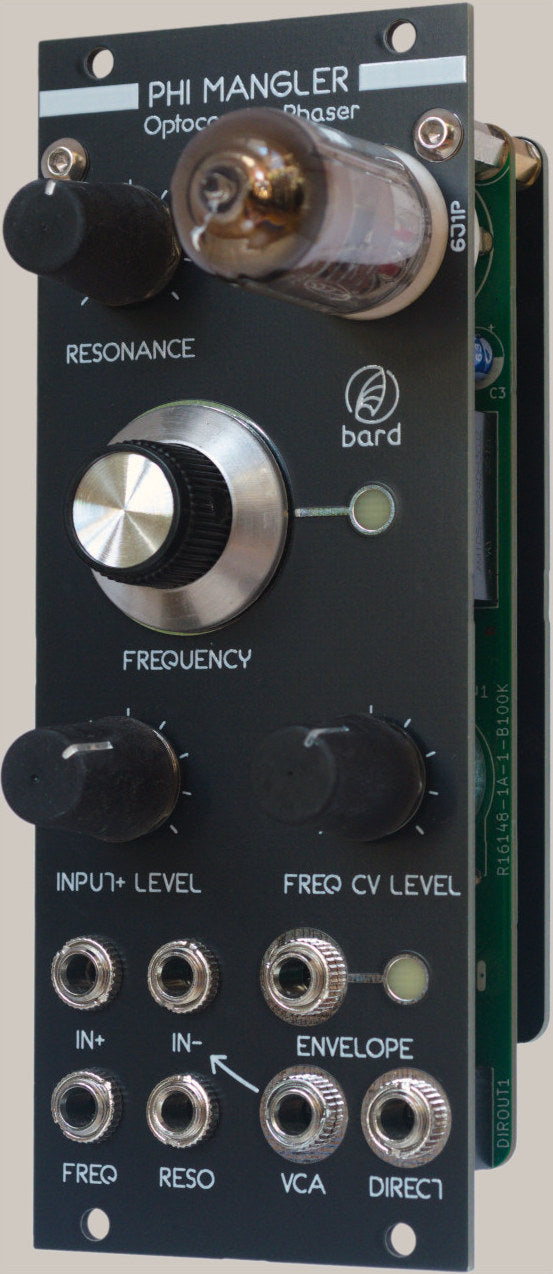

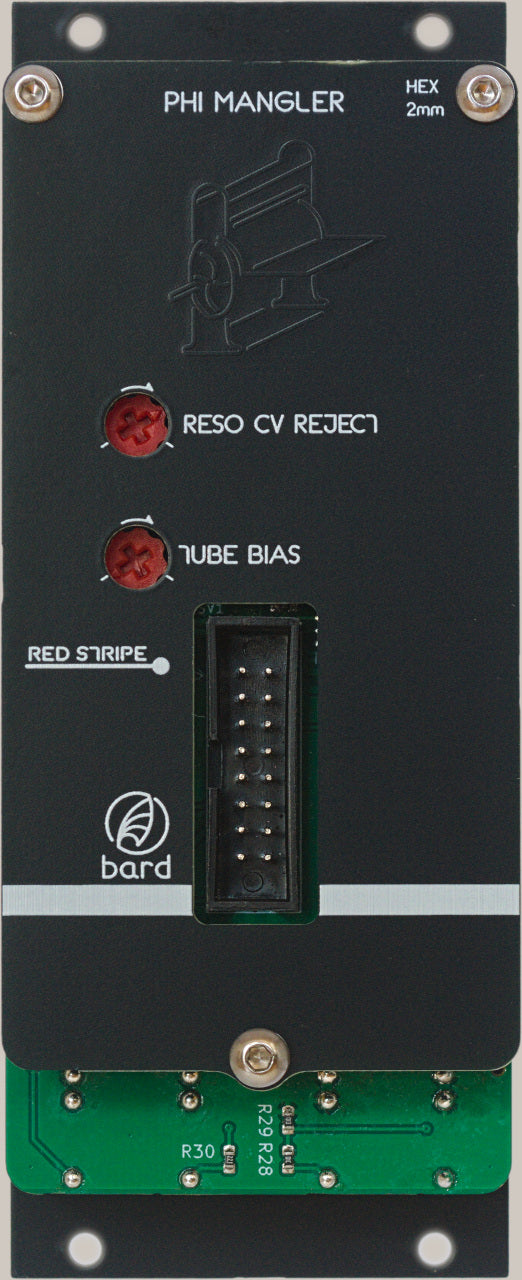

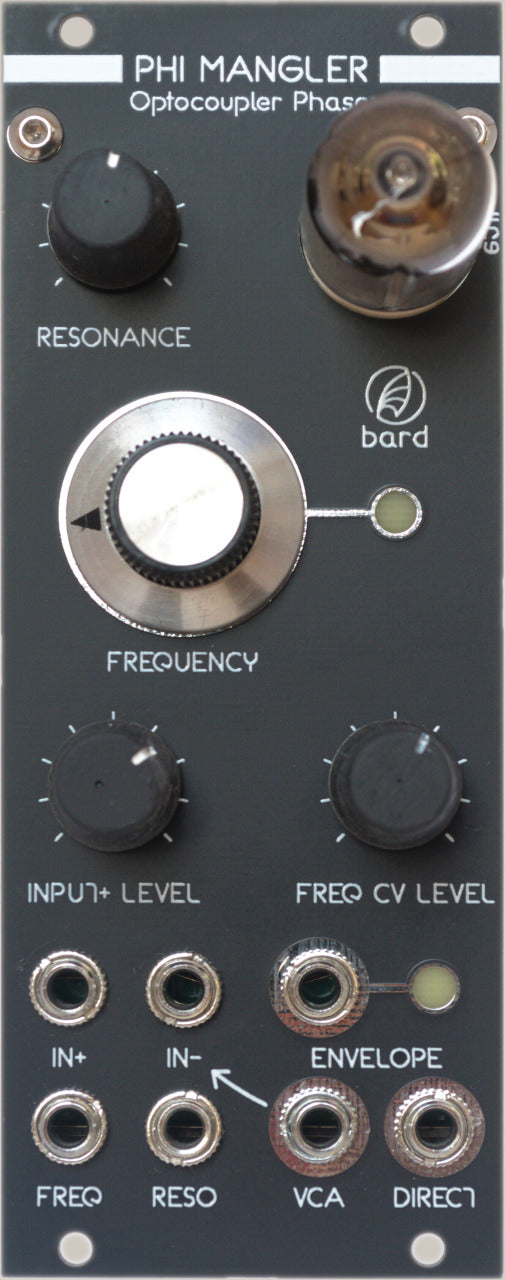

Phi Mangler

Phi Mangler is a four-stage Vactrol-based phaser that utilizes pentode VCA for controlling feedback amount. Providing wide frequency response and non-linearity of the vacuum tube, this module is capable of creating very distinctive phasing sounds.

Besides being a phaser, Phi Mangler can be used as a vacuum tube VCA channel. Autogain feature provides limiting to the VCA signal that can decrease dynamic range and create another dimension for saturated feedback oscillation sounds. Send-return of the feedback signal is possible! Since both frequency and resonance can be controlled by control voltages, it is easy to imagine drum sounds and complex waveforms being produced by the unit. On top of all of that, Phi Mangler can be used as a envelope follower which is internally incorporated in Autogain functionality. It can be patched back to frequency control to create "Envelope Filter" effect.

Features

◯ Four-stage voltage-controlled phaser using photoresistive cells

◯ Two modes of operation: Phaser with feedback and phasing non-resonant VCA

◯ 6J1P (6Ж1П) pentode running on high voltage for VCA.

◯ DC coupled inputs, AC coupled outputs

◯ Autogain option on resonance feedback for taming resonance amplitude

◯ Separate input (IN B) for bypassing feedback or creating send-return configuration

◯ Independent Direct Phaser Output and Post-VCA Output

◯ Separate Envelope Follower output

◯ Deep bass response

Eurorack synth compatible
10HP, 28mm deep
Weight: 280g
Current draw: +12V 20mA; -12V 18mA; +5V 170mA
