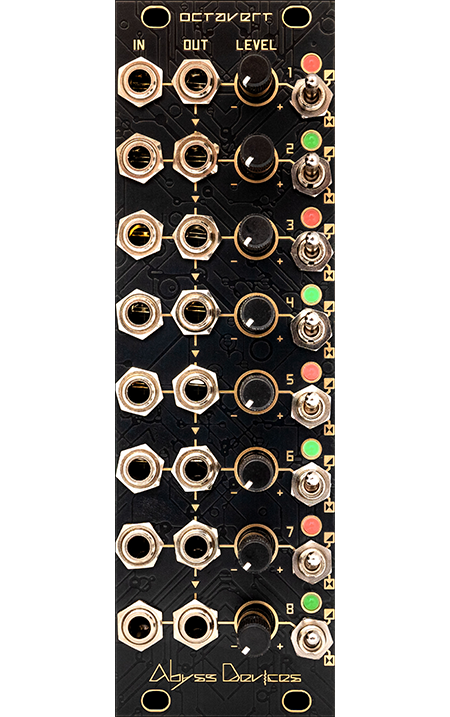

Abyss Devices - Octavert (8 channel attenuverter/attenuator mixer)

**FREE SHIPPING IN CANADA**

Prices include taxes! Contact us if out of stock!

Octavert can be used as a cascading mixer, offset generator, fixed voltage source, attenuverter, attenuator!

Octamix has similar features but with added clickless mutes and cv input.

– 8 channels featuring ~2x gain in attenuator or attenuverter mode

– Switch per channel alternate between attenuator or attenuverter

– Cascading signal flow: channel 1 out is normalled down to the next channel, until the 8th

– Input normalled to 5v to use as a fixed voltage generator

– Offset generator (clockwise = positive / counter-clockwise = negative)

– Bi-polar red/green LED monitors the signals at the outputs (red = negative voltage / green = positive voltage)

– Daisy chain compatible with any of our mixer modules

– Jumper at the back sets if inserting a cable in the last output breaks the daisy chain output or not.

A few patch ideas:

Same as our 2hp ATV module but with more channels

Width: 8hp / Weight: 100gr/ Depth: 20mm

Power consommation:
-12v: 80mA
+12v: 80mA
